Butt & Flash Butt Welding Machines
The SUN series is designed for end-to-end resistance welding of metal wire, rod, tube and profile workpieces using controlled clamping and upset force.
View productButt & Flash Butt Welders
Butt and flash-butt welding equipment for wire, rod, tube and profiles.
Showing 1–12 of 238 items
160KVA copper stranded wire pneumatic butt welding machine
Model: UNG-160 Power:160kva Docking:50~300Square copper stranded wire, aluminum stranded wire, copper rod, aluminum rodThe 160KVA copper stranded wire butt welding machine adopts pneumatic pressurization and photoelectric positioning.Touch screen programming control, water-cooled low-voltage high-current intelligenceResistance welding machine, used with sleeves to weld copper stranded wires and aluminum stranded wiresWire, stranded conductor, welded firmly in 2 seconds, smooth and without flash. Please read below for advantages and features
View product
2 minutes to understand the difference between resistance butt welding machine and flash butt welding machine
In 2 minutes, learn the difference between resistance butt welding machines and flash butt welding machines, and provide resistance welding equipment selection, process consultation and customization services. Wuxi Xinxing Welding Equipment Factory provides customers with welding solutions.
View product

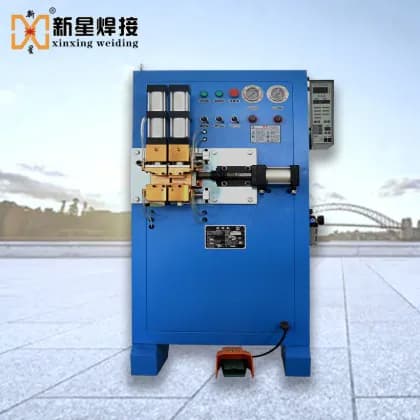

25KVA multi-stranded wire butt welding machine
Model：UNG-25 Power:25KVA Docking:10-70 square copper stranded wire, 16-70 square aluminum stranded wire, tinned stranded wireΦ4-8 copper rod, Φ5-10 aluminum rodThe multi-stranded wire butt welding machine is a kind of resistance welding machine (butt welding machine) and is a new star.A pneumatic butt welding machine developed by the Welding Equipment Factory in 2005.It adopts pneumatic clamping and pneumatic transverse upsetting, and is equipped with internal and external full water cooling system andThe special butt welding controller can accurately adjust parameters and weld high-quality assembly line standard products.
View product
50KVA pneumatic multi-stranded wire butt welding machine
Model：UNG-50 Power:50KVA Docking:16-120 square copper stranded wire, 25-120 square aluminum stranded wire, tinned stranded wireφ4-12 copper rod φ4-16 aluminum rodThe pneumatic stranded wire butt welding machine is one of the resistance welding machines (butt welding machines).A pneumatic butt welding machine developed by Xinxing Welding Equipment Factory in 2005.It adopts pneumatic clamping and pneumatic transverse upsetting, and is equipped with internal and external full water cooling system and specializedWith the butt welding controller, the parameters can be adjusted accurately, and when used together with the casing, it can be used without burrs.Welding multi-core wire harnesses can also weld single-core copper wires.
View productA brief analysis of the welding process of copper and aluminum pipe butt welding machines
Briefly analyze the welding process of copper and aluminum pipe butt welding machines, and provide resistance welding equipment selection, process consultation and customization services. Wuxi Xinxing Welding Equipment Factory provides customers with welding solutions.
View productA complete set of operation methods for joint quality adjustment based on butt welding workpieces
A complete collection of joint quality adjustment operation methods for butt welding workpieces, and provides resistance welding equipment selection, process consulting and customization services. Wuxi Xinxing Welding Equipment Factory provides customers with welding solutions.
View product
AC copper and aluminum pipe butt welding machine PLC version with thimble
Model:UN6 PLC version with thimblePower:50KVA Welding range:3-12mm copper tube aluminum tube copper aluminum tubeThe UN6 copper and aluminum pipe butt welding machine adopts pneumatic clamping and pneumatic transverse upsetting, and is equipped with a specialWith the butt welding controller, the welding current and welding time can be accurately adjusted. Just step on the foot switch to complete the entire welding process.This butt welding machine has a high degree of automation and stable welding quality. Compared with the standard version, it has upgraded auxiliary configurations such as welding stroke limit, upsetting air pressure conversion function, PLC programmable control, optional tempering device, ejection cylinder, positioning cylinder and other auxiliary configurations. It adopts modular design and linear guide rail guidance with higher precision and easier maintenance.
View product
BDN metal thin strip spot welding machine
Model: BDN Power: 16KVA/25KVASpot welding: 0.05-0.25mm thick copper strip, copper foil, aluminum strip, aluminum foil, steel strip less than 0.5mm thickBDN thin strip resistance spot welding machine belongs to the single-phase AC resistance butt welding machine category.This series of welding machines are widely used in low carbon steel sheets, stainless steel sheets, aluminum strips, etc.metal welding,Special equipment specially designed for welding thin strips on wire and cable production lines. It has a 90CM*110CM wide chrome-plated table with a shearing mechanism and fixing device. It has 8 current adjustment gears and a time relay to set the welding time. It is of high quality and low price, and sells well at home and abroad.
View product
BDN2 optical cable shielded aluminum strip spot welding machine
The BDN2 foil strip resistance spot welding machine belongs to the single-phase AC resistance butt welding machine category.This series of welding machines are widely used in low carbon steel sheets, stainless steel sheets, aluminum strips, etc.metal welding,Special equipment specially designed for welding thin strips on wire and cable production lines. It has a 90CM*110CM wide chrome-plated table, equipped with a shearing mechanism and fixing device. The controller automatically controls the welding time and current. It is high quality and low price, and sells well at home and abroad.
View productBrief description of un1s iron wire butt welding machine
A brief introduction to un1s iron wire butt welding machine, which provides resistance welding equipment selection, process consultation and customization services. Wuxi Xinxing Welding Equipment Factory provides customers with welding solutions.
View productButt welding and brazing integrated machine butt copper bar case
Butt welding and brazing integrated machine butt copper bar case, providing resistance welding equipment selection, process consultation and customization services. Wuxi Xinxing Welding Equipment Factory provides customers with welding solutions.
View product
