stainless steel pointsWelding machine (here is the one with a controller)Pneumatic spot welding machine) Welding two workpieces, the two workpieces should be able to switch at any time during welding. During welding, the secondary welding current value is required to be displayed (induction coil sampling), and the workpieceThe welding process parameters required for A and B are as follows:
Parameter number
Parameter name
Parameter value
artifactA (Specification 1)
artifactB (Specification 2)
Preload time
welding current
Welding time
maintenance time
working method
Parameter settings:
1. Press the "Work/Setting" button, the setting indicator light will light up, indicating that it is in the setting state;
2. According to the semicircle under the standard number key to select the specification number as"1" means that all the following parameter settings are performed in specification No. 1:
3. According to the specification number key to select the specification number as"2" means that all the following parameter settings are performed in specification No. 2:
4. Select constant current control mode, induction coil range (A) 30.0KA;
5. Select the induction coil sampling method (b) b=1;

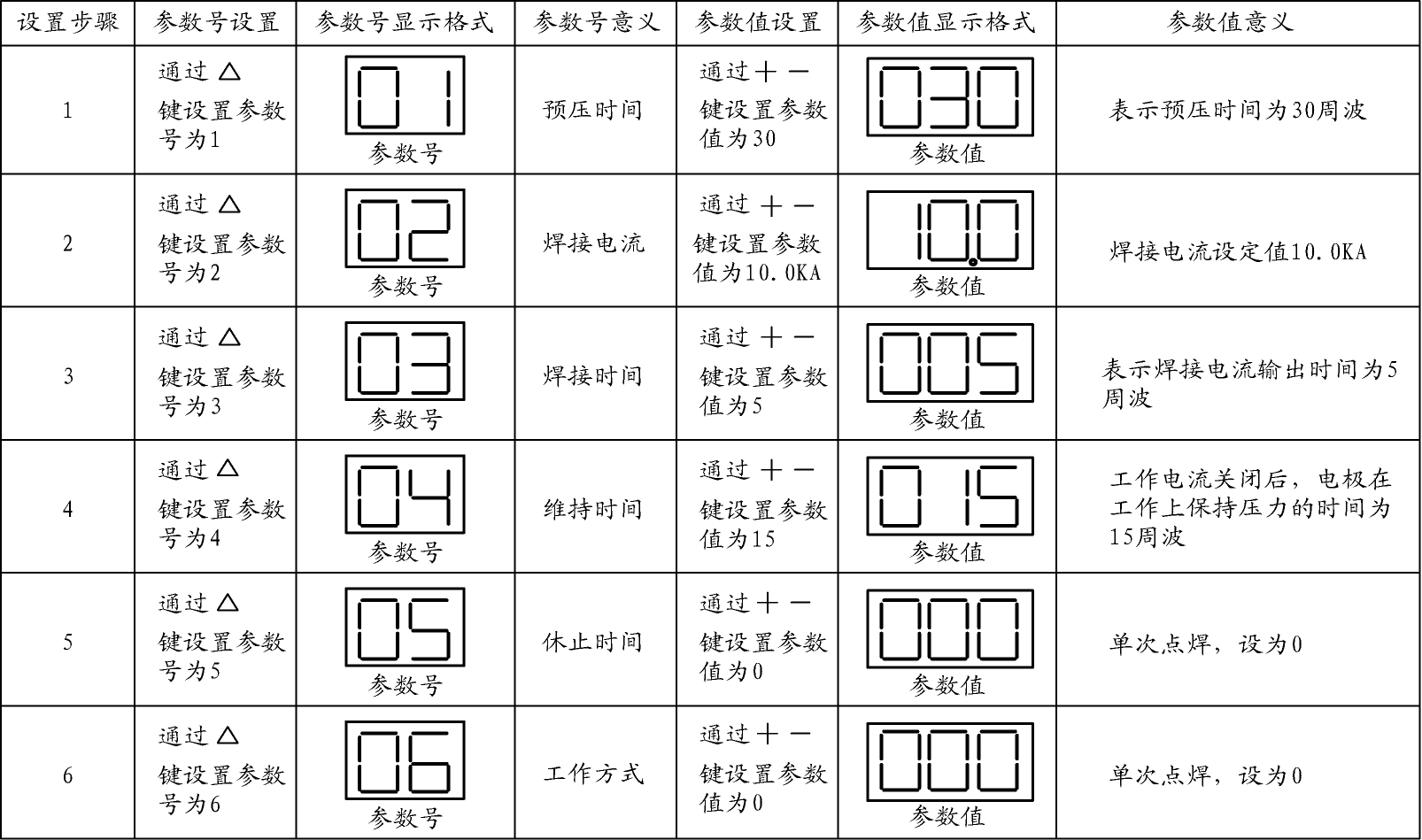

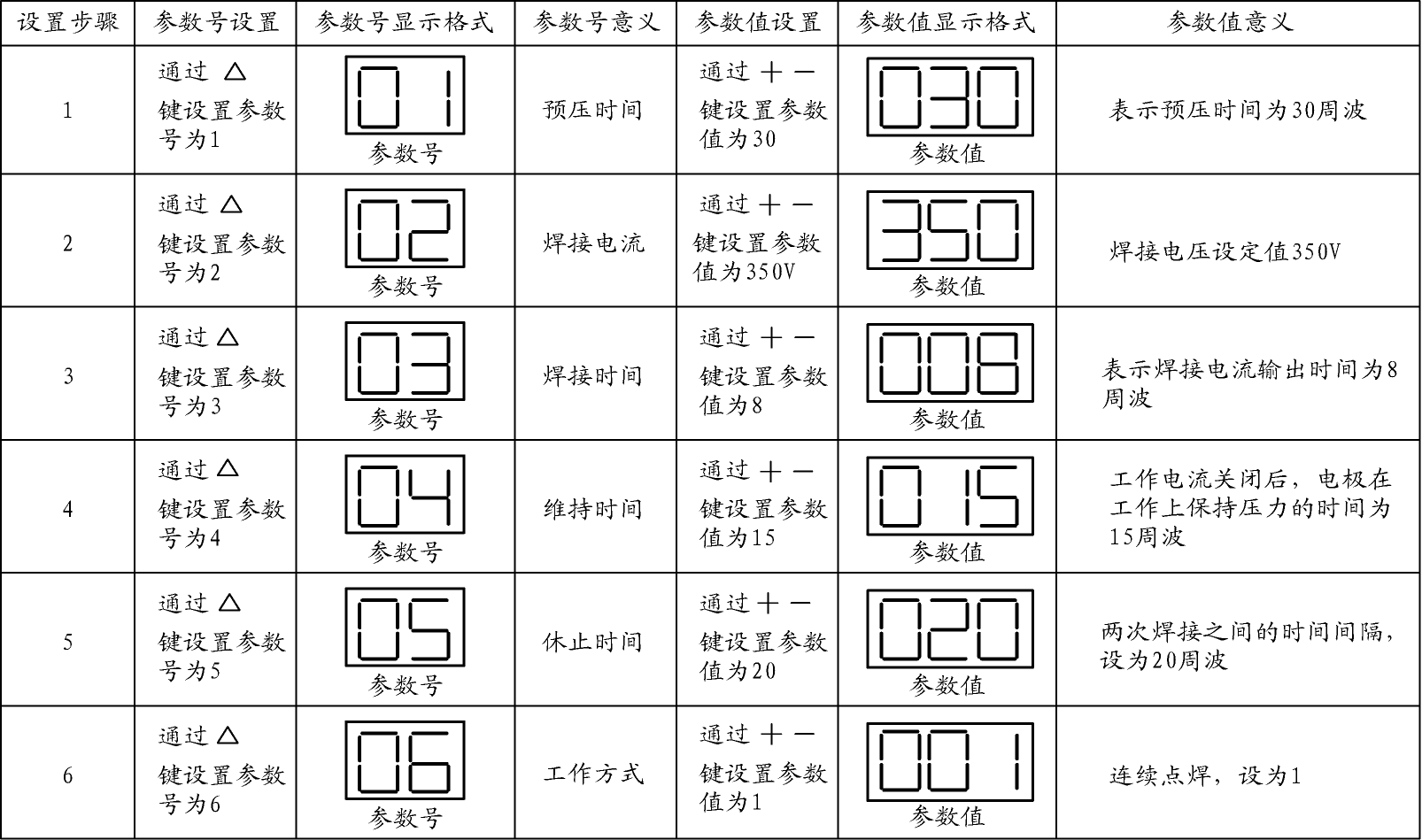

6. Press and hold the ▼ key to enter the secondary menu and set the parameters according to the table:
7. Similarly, long press ▼key to exit the secondary menu.
artifactA's welding
1. According to the semicircle under the standard numberkey to select the specification number as“1”；
2. Press the "Adjust/Weld" button to make the welding indicator light on;
3. Press the "Setting/Work" button to make the work indicator light on;
4. Place workpiece A between the electrodes, activate the foot switch, and start welding.
artifactB's welding
1. Press the "Setting/Work" button to make the setting indicator light on;
2. According to the semicircle under the standard numberkey to select the specification number as“2”；
4. Place workpiece B between the electrodes, close the foot switch, and start welding.
Similarly, if the job controller needs to be in multiple specifications (up to5) to switch, just in the setting state, through the specification number Press the key to set the required specification number as the current specification, then return to the working state, close the foot switch, and the controller can work according to the welding parameters of the current specification.
