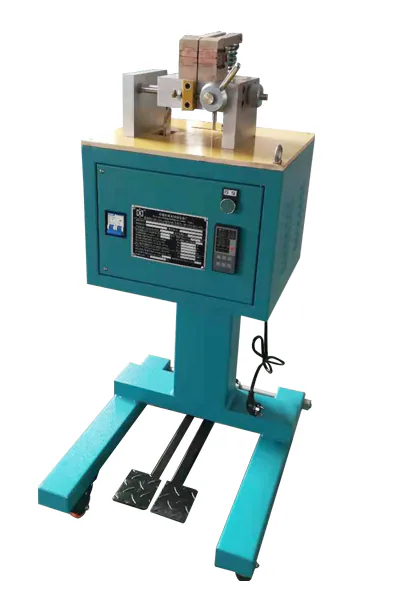

CNCMetal wire butt welding machineIt is a distinctive model among the resistance butt welding machines produced by Xinxing Welding.
It is widely used to butt single-core copper wires, steel wires, iron wires, aluminum wires and aluminum wires.
It has powerful functions, accurate butt joints, high compliance rate of workpieces after welding, and is simple and easy to operate.
There are not many steps to operate it, just a few, and you will know it at a glance.
Turn the eccentric wheel to the left to open the engine head.
Step down on the left pedal to open the left electrode jaw, put 1 workpiece in, and release the pedal.
Depress the right pedal to open the right electrode jaw, put in another workpiece, and release the pedal The length of the workpiece extending beyond the electrode is very important to the welding quality.
Generally, the protruding length on one side is: 1-1.
5 times the diameter of the workpiece for low carbon steel, 1-2.
5 times the diameter of the workpiece for aluminum and brass, and 1.
5-3 times the diameter of the workpiece for pure copper.
Turn the eccentric wheel to the right to close the machine head.
Press the welding button, and the welding end face will automatically be heated, melted and pushed (pushed) through resistance.
After squeezing the oxide layer, the two weldments will be firmly combined.
When the pushing is completed, you can let go.
Take out the workpiece Xinxing Welding Equipment Factory is a resistance welding machine manufacturer with 29 years of experience integrating R&D, production and sales.
Its products include: 1.
Butt welding machines, micro butt welding machines, medium power butt welding machines, high power butt welding machines, ranging from manual to automatic.
Spot welding machine, semi-automatic foot-operated spot welding machine, pneumatic spot welding machine, capacitor energy storage spot welding machine,Medium frequency inverter spot welding machine, welding machines, fully automatic welding production lines, etc.
, there is always one suitable for you.
The projection welding machine can be quickly modified from the spot welding machine according to the workpiece material style.
Seam welding machine, power frequency AC seam welding machine, medium frequency DC seam welding machine, customized for you according to the workpiece.
Resistance brazing machine, customized according to the size of copper plate and copper bar.
If you are also interested in our welding equipment, please contact us: 400-001-0502.
